All-In-One Key Programming & Advanced Diagnostics

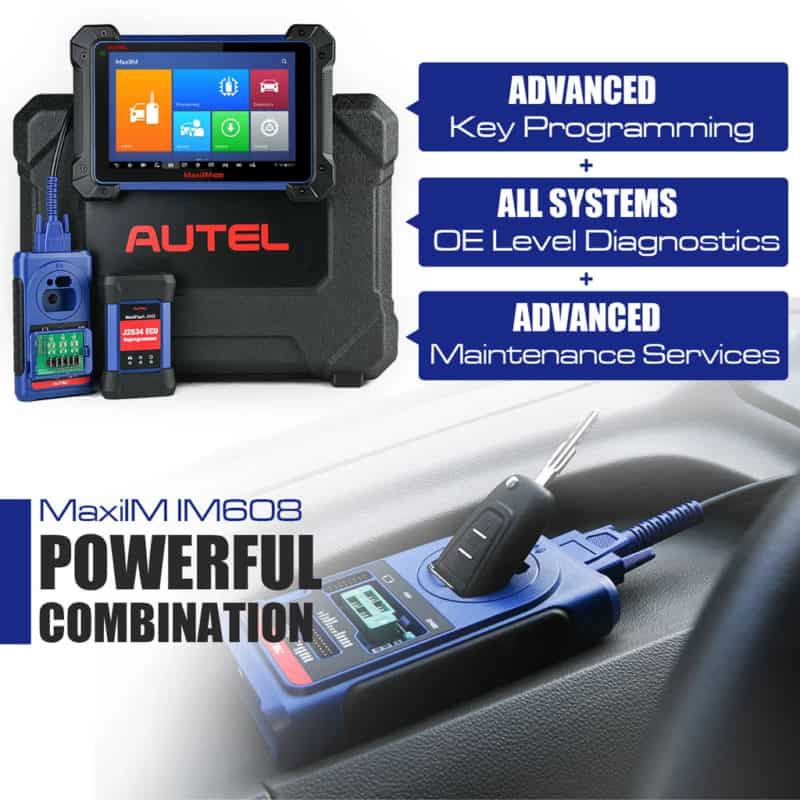

With the upgraded key programmer XP400 Pro, the MaxiIM IM608 Pro is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android-based 10.1-inch touchscreen tablet.
The MaxiIM IM608 Pro features an automated and guided Smart Mode to help technicians perform key learning effortlessly, and an Expert Mode to provide experienced technicians with quick access to desired functions.
You can now choose between 1 or 2 Years Software Updates - 1 Year Software Updates
What’s New?
IM608 vs IM608 PRO
- BMW EWS3 key learning (need to use with APB114)
- Mercedes-Benz W209 EIZ read/write/erase (need to use with APB118)
- OEM Mercedes-Benz NEC key learning (need to use with APB115)
Read/write Data
- EEPROM – added 60 chip types, now supports 445 types (need to use with APB119, 121, 122, 123 and 126);
- MCU – added 32 chip types, now supports 2067 types (need to use with APB120, 127and 128);
- Odometer – will add 162 chip types, will be able to support 171 types in July;
- Engine ECU – added 1 chip type, now supports 41 chip types;
- Immobilizer ECU – added 3 chip types, now supports 181 chip types.
- Key unlock – supports 11 key types (need to use with APB113).
The MaxiIM IM608 Pro supports all the functions of the previous MaxiIM IM608 with a more powerful and stable performance of key functions, including read/write keys, read/write chips, and read/write Mercedes infrared key.
Main Features
- Read & Clear Fault Codes | Short description & code provided (can clear faults & warning lights)
- Service Functions | Oil light / EPB / BMS / SAS / DAF etc
- Access Live Data | Data from the ECU/Modules/sensors displayed in real-time (Oxygen sensor-rich/lean etc)
- Actuation/Component Testing | Actuate (switch on/off) to diagnose functionality (relays, fans, locks etc)
- Coding Functions | Allows you to change vehicle parts that need to be ‘coded’ (Injectors, ABS, starters etc)
- Flashing/Reprogramming | Advanced updating/coding of ECU’s online through a J2534 pass-through flashing device
- Advanced Key Programming | IMMO functions, Transponder read/write/identify, MCU/EEPROM chip read/write
Powerful IMMO Functions
- Auto Detect Make/Model/Year/System
- Read PIN (All Key Lost)
- Key Learning
- IMMO ECU Reset/Adaption
- IMMO ECU Refresh/Coding
- Remote Learning
- AUDI Q5/A4/A5 2015-2017 Key Learning
- VW MQB Key Learning
- BMW FEM/BDC Key Learning and Adaption
- BMW CAS4 Key Learning and Adaption
- Mercedes Key Learning
- 2015-2018 Land Rover & Jaguar write key via dump
- Volvo Smart Key Learning/knob-style smart key
AKL (All keys lost function) for MQB will be charged at $30 per use
Advanced Programming Functions
- EEPROM Read/Write
- MCU Read/Write
- Key Programming
- Mercedes Key Read/Write
- Remote Frequency Detect
OE- Level Diagnostic For 80+ Vehicle Makes
- All Systems Diagnostics
- AutoVIN / AutoScan
- Read / Erase Codes
- View, Record and Playback Live Data
- View Freeze Frame Data
- Shop and Data Manager Applications
- MaxiFlash JVCI ECU Programmer (Bluetooth/USB cable)
Advanced Service Functions
- Oil Service Reset
- Parking Brake Pad Relearn After Replacement
- Steering Angle Sensor Relearn
- Battery Registration and Reset
- Diesel Particulate Filter Regeneration
- Tire Pressure Monitoring System
- Active Test
- ECU Coding
- VW/Audi Component Protection
- Complete Service Functions
